Pratt Burnerd 9" 5C Hand Wheel Collet Chuck 1-1/2 - 8 Thread PB23-41

(No reviews yet) Write a Review
SKU:
PB23-41
Condition:
New
Availability:
In Stock
Shipping:
Calculated at Checkout
Brand:
Pratt Burnerd
Type:
Manual Collet Chuck
Style:
Hand Wheel
Diameter:
9" Chuck
Capacity:
5C
Spindle:
1-1/2 - 8
$1,349.00

Description

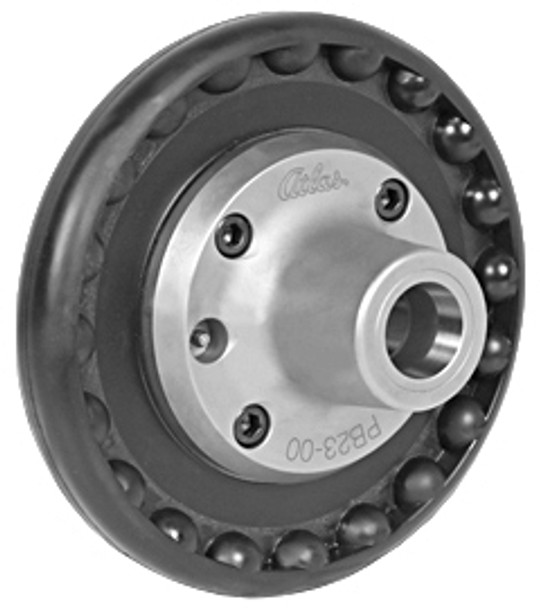

Pratt Burnerd 9" 5C Front Hand Wheel Quickie Collet Chuck 1-1/2 - 8 Mount PB23-41

  • Fast and easy, front hand wheel operation
  • Reduces operator fatigue
  • Quick Change over Chuck to Collet Chuck - No linkages or drawtubes
  • For 5C collets
  • One year warranty
  • Accurate-Maximum cone TIR .0005"
  • Available in D type (camlock), A type, L type (long tapered nose) threaded, Flat Back and 4º taper
  • Hand wheel teeth nitrided for longer life
  • Body nickel plated for corrosion resistance
Manufacturer Pratt Burnerd
Model Number PB23-41
Type Manual Collet Chuck
Style Hand Wheel
Diameter (In) 9
Capacity 5C
Round Capacity (In) 1.06
Spindle Mount 1-1/2 - 8
Nose Diameter (In) 2.25
Country of Origin Spain
