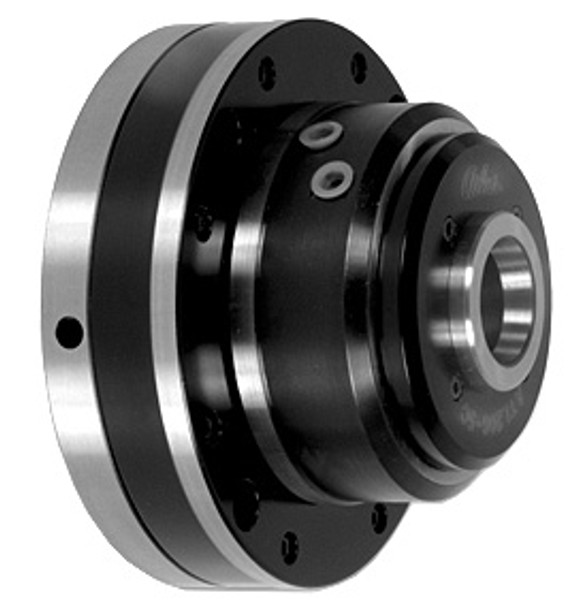

Pratt Burnerd 16C Air Powered Front Mount Dead Length Collet Chuck 2-3/8 - 6 Thread ATL207-16C46

(No reviews yet) Write a Review
SKU:
ATL207-16C46
MPN:
ATL207-16C46
Condition:
New
Availability:
In Stock
Brand:
Pratt Burnerd
Type:
Power Collet Chuck
Style:
Air Powered
Capacity:
16C
Spindle:
Threaded
  • Pratt Burnerd 16C Air Powered Front Mount Dead Length Collet Chuck 2-38 - 6 Thread ATL207-16C46
  • Pratt Burnerd 16C Air Powered Front Mount Dead Length Collet Chuck 2-38 - 6 Thread ATL207-16C46
Contact us for pricing
Frequently bought together:

Description

Pratt Burnerd 16C Air Powered Front Mount Dead Length Collet Chuck 2-3/8 - 6 Thread ATL207-16C46

  • No hydrualic system required
  • No drawtube or air feed tubes restricting spindle bore
  • No rear cylinders and cylinder adapters
  • Low cost
  • Easily convert any lathe or grinder into a production machine
  • Ideal for rotary table applications
  • Change from collet chuck to standard chuck quick and easy
  • High speed 3500 RPM
  • High accuracy less than .001" T.I.R.
  • Repeats on duplicate parts plus minus .00015"
  • Dead length design
  • For best accuracy use high quality crawford collets
  • Lever or foot pedal actuated
  • Low maintenance with oil mist lubrication system
  • High resistance to coolant and chip penetration
  • Uses 16C collets, range 1/64" (1mm) to 1-5/8" (42.5mm)
  • Available in A, D, L, 4 degree, threaded and straight recess mounting
Manufacturer Pratt Burnerd
Model No. ATL207-16C45
Type Power Collet Chuck
Style Air Powered
Diameter 7.67"
Capacity 16C
Spindle Mount Threaded
Thread Size 2-3/8 - 6
A 195mm (7.67")
B 160mm (6.30")
C 40mm (1.57")
D 5mm (0.20")
E 112mm (4.41")
F 63mm (2.48")
G 133mm (5.23")
H 176mm (6.93")
Screw Hole Diameter 9mm (0.35") x 3
Collet Type 16C Collets
Max RPM 3500
Sleeve Stroke 4mm (0.16")
Air Pressure 3-8 kg/cm2 (42-114 psi)
Through Hole Diameter 40mm (1.57")
Chuck Weight 14kg (30.8 Lbs)
Grip Force 12,300 Lbs @ 100 PSI
Country of Origin United Kingdom
