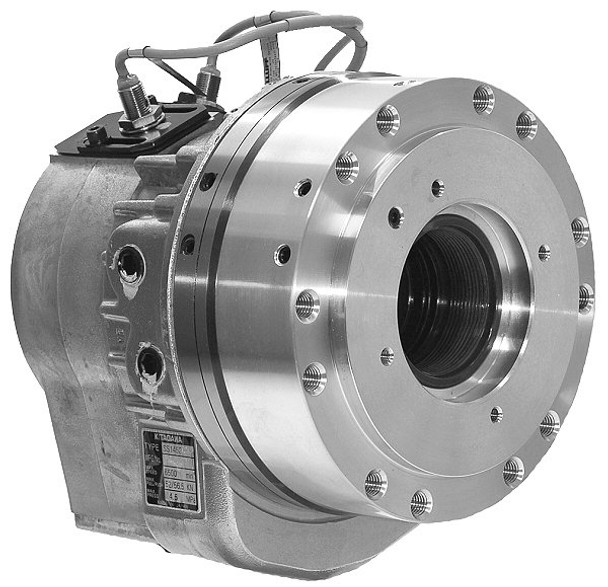

Kitagawa SS1452K Compact Style Open Center Hydraulic Cylinder

(No reviews yet) Write a Review
SKU:
SS1452K
Condition:
New
Availability:
In Stock
Shipping:
Calculated at Checkout
Brand:
Kitagawa
Type:
Hydraulic Cylinder
Style:
Open Center
  • Kitagawa SS1452K Compact Style Open Center Hydraulic Cylinder
  • Kitagawa SS1452K Compact Style Open Center Hydraulic Cylinder
  • Kitagawa SS1452K Compact Style Open Center Hydraulic Cylinder
  • Kitagawa SS1452K Compact Style Open Center Hydraulic Cylinder
$5,324.00

Description

Kitagawa SS1452K Compact Style Open Center Hydraulic Cylinder

  • Accomodates BB200 and B-200 series
  • The compact design maximises lathe performance
  • 30% reduction in length of current S series
  • Speed increased
  • Can operate one size larger chuck due to increased pull forces
Brand Kitagawa
Type Hydraulic Cylinder
Style Open Center
Model Number SS1452K
Piston Diameter (mm) 145
Piston Stroke (mm) 22
Piston Area Push Side (cm²) 132.9
Piston Area Pull Side (cm²) 122.6
Draw Bar Push Side (kN[kgf]) 56.5 [5761]
Draw Bar Pull Side (kN[kgf]) 52.1 [5313]
Max Operation Pressure (MPa[kgf/cm²]) 4.50 [45.9]
Max RPM 6500
Country of Origin Japan
