Bison 10" Horizontal & Vertical Low Profile Rotary Table 7-621-010
- SKU:
- 7-621-010
- MPN:
- 7-621-010
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
- Brand:
- Bison
- Type:
- Rotary Table
- Style:
- Low Profile
- Size:
- 10
Frequently bought together:
Description
Bison 10" Horizontal & Vertical Low Profile Rotary Table 7-621-010
- Tables can be used horizontally and vertically
- Rigid, low profile, compact design provides for three types of dividing
- Angular indexing can be performed through the graduated ring from 0 degrees to 360 degrees in increments of 1
- Rapid indexing is done by means of a special dividing mechanism in divisions of 2, 3, 4, 6, 8, 12, 24 without any diassembly operations
- Indexing with the set of special dividing plates
- Disengage-able worm gear permits direct and rapid indexing
- The table body is made of semi-steel
- Parallelism of clamping surface to base: .0008"
- Flatness of clamping surface: .0008"
- True running of MT center hole: .0004"
- Squareness of clamping surface to base: .0008"
- Indexing accuracy: 1'
Brand | Bison |
Type | Rotary Table |
Style | Low Profile |
Model Number | 7-621-010 |
Table Size | 10 |

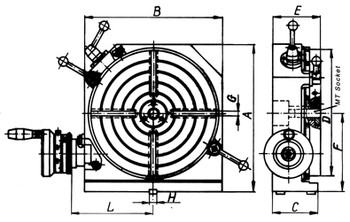

A (In) | 12.5 |
B (In) | 11.2 |
C (In) | 4.53 |
D (In) | 9.84 |
H (In) | .709 |
F (In) | 6.89 |
G (In) | .472 |
E (In) | 4.52 |
L (In) | 6.89 |
Worm Ratio | 1:90 |
Thru Hole (In) | 1.378 |
Center Hole MT | 3 |
Orientation | Horizontal & Vertical |
Country of Origin | Poland |
Includes | 2 Mounting Bolts, Crank Wheel, 3 Dividing Plates, 1 Handle |
