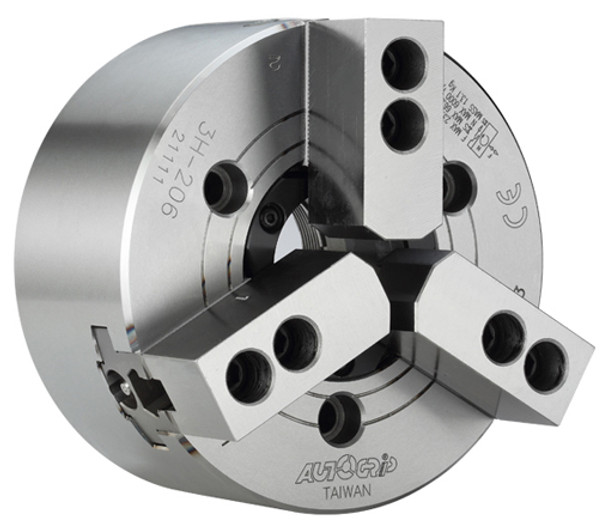

AutoGrip 10" 3 Jaw Large Thru Hole Power Chuck A2-8 Adapter 3H-10A8

(No reviews yet) Write a Review
SKU:
3H-10A8
Condition:
New
Availability:
In Stock
Shipping:
Calculated at Checkout
Brand:
AutoGrip
Type:
Power Chuck
Style:
Open Center
Diameter:
10" Chuck
Jaws:
3 Jaw
Spindle:
A2-8
Features:
Large Thru Hole
$1,890.00

Description

AutoGrip 10" 3 Jaw Large Thru Hole High Speed Hydraulic Power Chuck A2-8 Spindle Mount Adapter 3H-10A8

  • 3 jaw wedge style with a large thru hole
  • All mating surfaces and internal parts are hardened, ground, and lubricated
  • High rigidity and clamping accuracy
  • Direct cross to Kitagawa B200 series power chucks
Brand AutoGrip
Type Power Chuck
Style Open Center
Model Number 3H-10A8
Diameter (In) 10
Number of Jaws 3
Min. Chucking Dia. (mm) 25
Max. Chucking Dia. (mm) 254
Spindle Mount Plain Back
Adapter Plate A2-8
Thru Hole Cap. (In) 2.95
Jaw Serrations 1.5mm x 60 Serrations
Max RPM 4200
Body Material Steel
Country of Origin Taiwan
Includes Soft Top Jaws, Set of T-Nuts, Set of Mounting Bolts, Wrench, Draw Nut Wrench
